Hi-Rotor PRN Series
Standard HI-ROTOR PRN Series

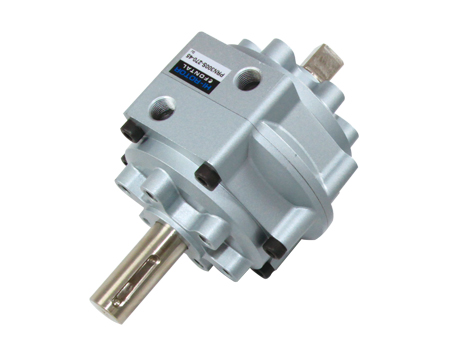

HI-ROTOR PRN Series
Vane type rotary actuator
| Model No. | Vane Type | Oscillation angle | Oscillation starting point | Output torque N.cm (kgf.cm) | Switch | Accessories |
| PRN50S | Single vane | 90° | 45° |
470 (48) | FM50 |
Flange Plate, Foot Plate, Hydro-cushion |
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRN150S | 90° | 45° |
1470 (150) | FM150 | ||
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRN300S | 90° | 45° |
2794 (285) | FM300 |
Foot Plate, Hydro-cushion | |
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRN800S | 90° | 45° |
10032 (1023) | FM800 | ||
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRN50D | Double Vane | 90° | 45° |
1019 (104) | FM50 |
Flange Plate, Foot Plate, Hydro-cushion |
| 100° | 40° | |||||
| PRN150D | 90° | 45° | 3432 (350) | FM150 | ||
| 100° | 40° | |||||
| PRN300D | 90° | 45° |
6668 (680) | FM300 |
Foot Plate, Hydro-cushion | |
| 100° | 40° | |||||
| PRN800D | 90° | 45° |
20152 (2055) | FM800 | ||
| 100° | 40° |
● The above data were measured on the Pressure at 0.49MPa(5kgf/cm²)
