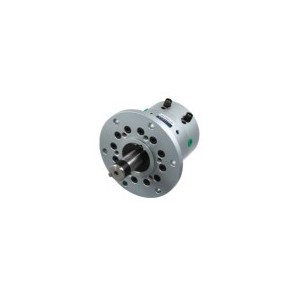

Hydraulic HI-ROTOR HRN Series
Hydraulic HI-ROTOR With Cushion HRN Series
Hydraulic vane type rotary actuator with cushion mechanism
Hydraulic vane type rotary actuator with cushion mechanism
| Model No |
Max Oscillation angle |
Rated pressure MPa (kgf/cm2) |
Min Operating Pressure MPa (kgf/cm2) |
Allowable load N(kgf) | |
| Radial | Thrust | ||||
| HRN-10S-C | 1800 |
7 (70) |
1 (10) |
9.8 (1) |
4.9 (0.5) |
| 900 | |||||
| HRN-15S-C | 1800 |
19.6 (2) |
9.8 (1) |
||
| 900 | |||||
| HRN-20S-C | 1800 |
49 (5) |
24.5 (2.5) |
||
| 900 | |||||
| HRN-30S-C | 1800 |
78.4 (8) |
39.2 (4) |
||
| 900 | |||||
| HRN-100S-C | 1800 |
147 (15) |
68.6 (7) |
||
| 900 | |||||
| HRN-200S-C | 1800 |
294 (30) |
137.2 (14) |
||
| 900 | |||||
| HRN-400S-C | 1800 |
343 (35) |
166.6 (17) |
||
| 900 | |||||
| HRN-700S-C | 1800 |
343 (35) |
166.6 (17) |
||
| 900 | |||||
● Shaft/Double end(keyway and square)
● Mounting/Flange mounting
