Air Preparation Equipment — QUBE System Unit — Air Lubricator

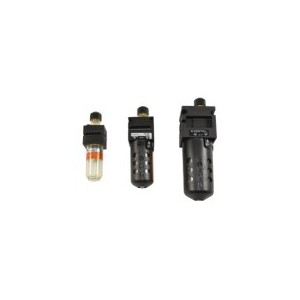

Air Lubricator L45, L55, L105
Sprays lubricating oil into compressed air
Sprays lubricating oil into compressed air
| Model No | Port size |
Bowl capacity (cm3) |
Min. air flow for oil dropping l /min(ANR) |
Option |
| L45-2,3 | Rc1/4,3/8 | 43 | 50 | Bracket |
| L45-2,3D | ||||
| L55-2,3,4 | Rc1/4,3/8,1/2 | 78 | ||
| L55-2,3,4D | ||||
| L105-4,6 | Rc1/2,3/4 | 240 | 80 | |
| L105-4,6D |
● D：metal bowl without sight glass
