Air Preparation Equipment — QUBE System Unit — Air Regulator

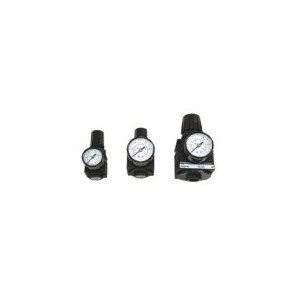

Air Regulator R45, R55, R105
Easy-to-use and high-performance regulator with one-touch locking adjust knob
Easy-to-use and high-performance regulator with one-touch locking adjust knob
| Model No | Port size |
Reduced pressure range MPa(kgf/cm²) |
Max. supply pressure MPa(kgf/cm²) |
Option |
| R45-2,3 | Rc1/4,3/8 | 0.03~0.8(0.3~8) |
1 (10) |
Bracket, Pressure gauge, Ring for panel-mounting |
| R45-2,3L | 0.02~0.42(0.2~4.2) | |||
| R55-2,3,4 | Rc1/4,3/8,1/2 | 0.02~0.8(0.2~8) | ||
| R55-2,3,4L | 0.01~0.42(0.1~4.2) | |||
| R105-4,6 | Rc1/2,3/4 | 0.02~0.8(0.2~8) |
