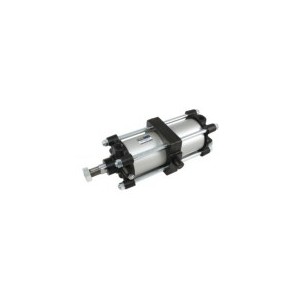

Air Cylinder — Square Cover — A Series
Air Cylinder A Series
Heavy duty type cylinder
| Series | Acting |
Bore size (mm) |
Standard stroke (mm) |
Pressure range MPa(kgf/cm²) |
|
AG2 (Built-in magnet) |
Double acting | φ 125 |
100,150,200 250,300,400 500 |
0.05~1 (0.5~10) |
| φ 140 | ||||
| φ 160 | ||||
| φ 180 | ||||
| φ 200 | ||||
| φ 250 | ||||
| φ 300 |
● Mounting/ Foot, Flange, Male clevis, Female clevis and Center trunion mounting
● Switch/ M type switch (reed type, proximity type) mountable
● Cushion/ Both sides air cushion
Cylinder with Lock Mechanism A☐L Series
Built-in drop prevention and designed to lock at stroke end
Built-in drop prevention and designed to lock at stroke end
| Series | Acting |
Bore size (mm) |
Standard stroke (mm) |
Lock position |
Pressure range MPa(kgf/cm²) |
| A☐L2 | Double acting | φ 125 |
100,150,200 250,300,400 500 |
Rod or head side |
0.15~1 (1.5~10) |
| φ 140 | |||||
| φ 160 | |||||
| φ 180 | |||||
| φ 200 | |||||
| φ 250 | |||||
| φ 300 |
● Mounting/ Foot, Flange, Male clevis, Female clevis and Center trunion mounting
● Switch/ M type switch (reed type, proximity type) mountable.
● Cushion/ Both sides air cushion
