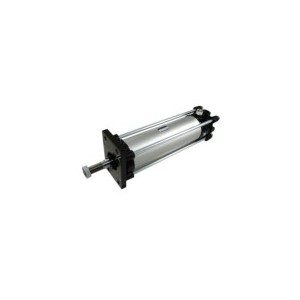

Air Cylinder with Lock Mechanism — KGSP Series
Cylinder With Brake Mechanism KGSP Series
High-precision orientation of brake cylinder arbitrary by air pressure
| Series | Acting |
Bore size (mm) |
Standard stroke (mm) |
Service life |
Pressure range MPa(kgf/cm²) |
| KGSP2 | Double acting | φ 40 |
50,75,100 150,200, 250,300 |
>500 million times |
0.05~1 (0.5~10) |
| φ 50 | |||||
| φ 63 | |||||
| φ 80 | |||||
| φ 100 |
● Mounting/ Nose, Foot, Flange, Male clevis, Female clevis and Center trunion mounting
● Switch/ M type switch (reed type, proximity type) mountable
● Cushion/ Both sides air cushion
